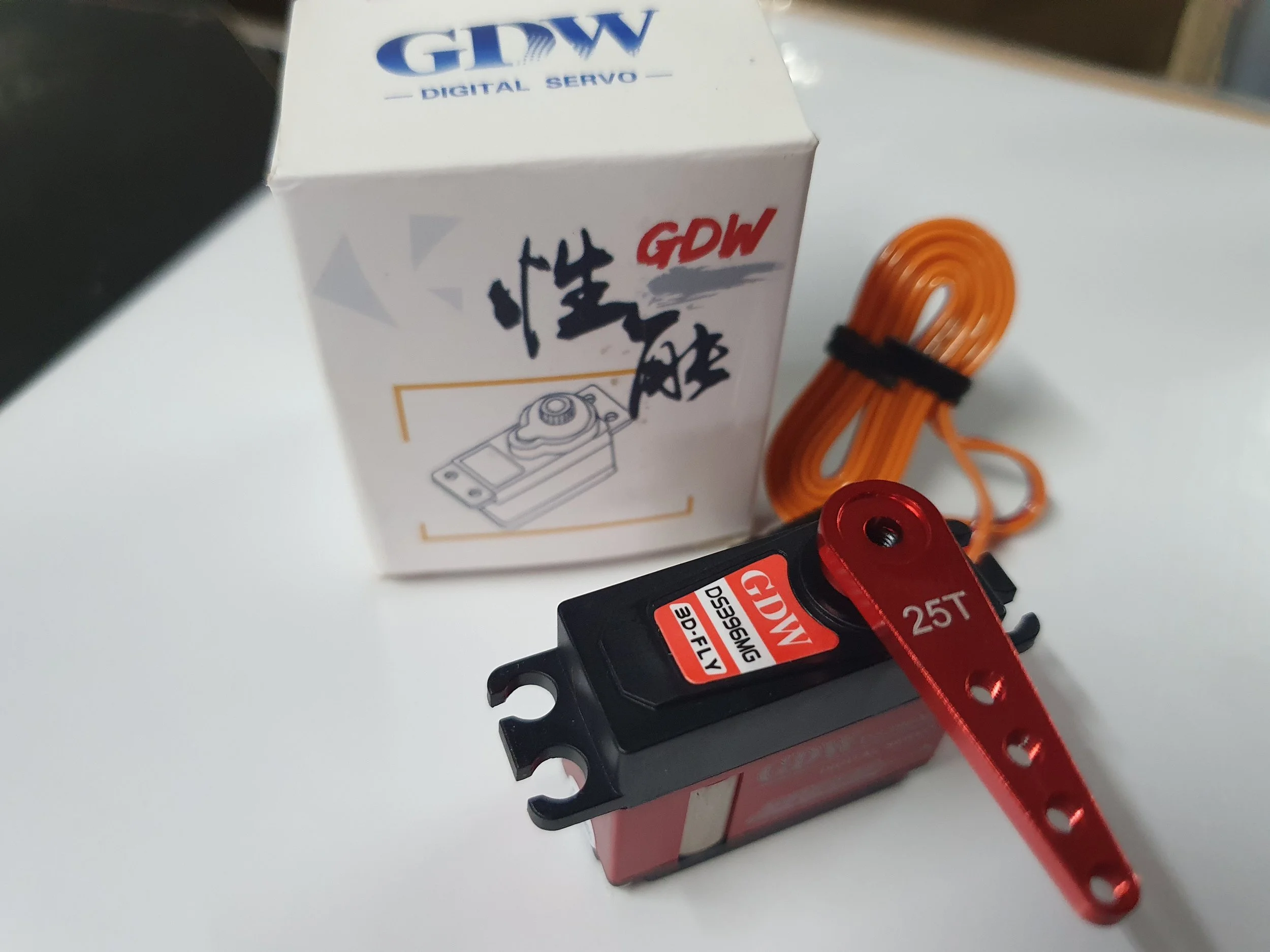

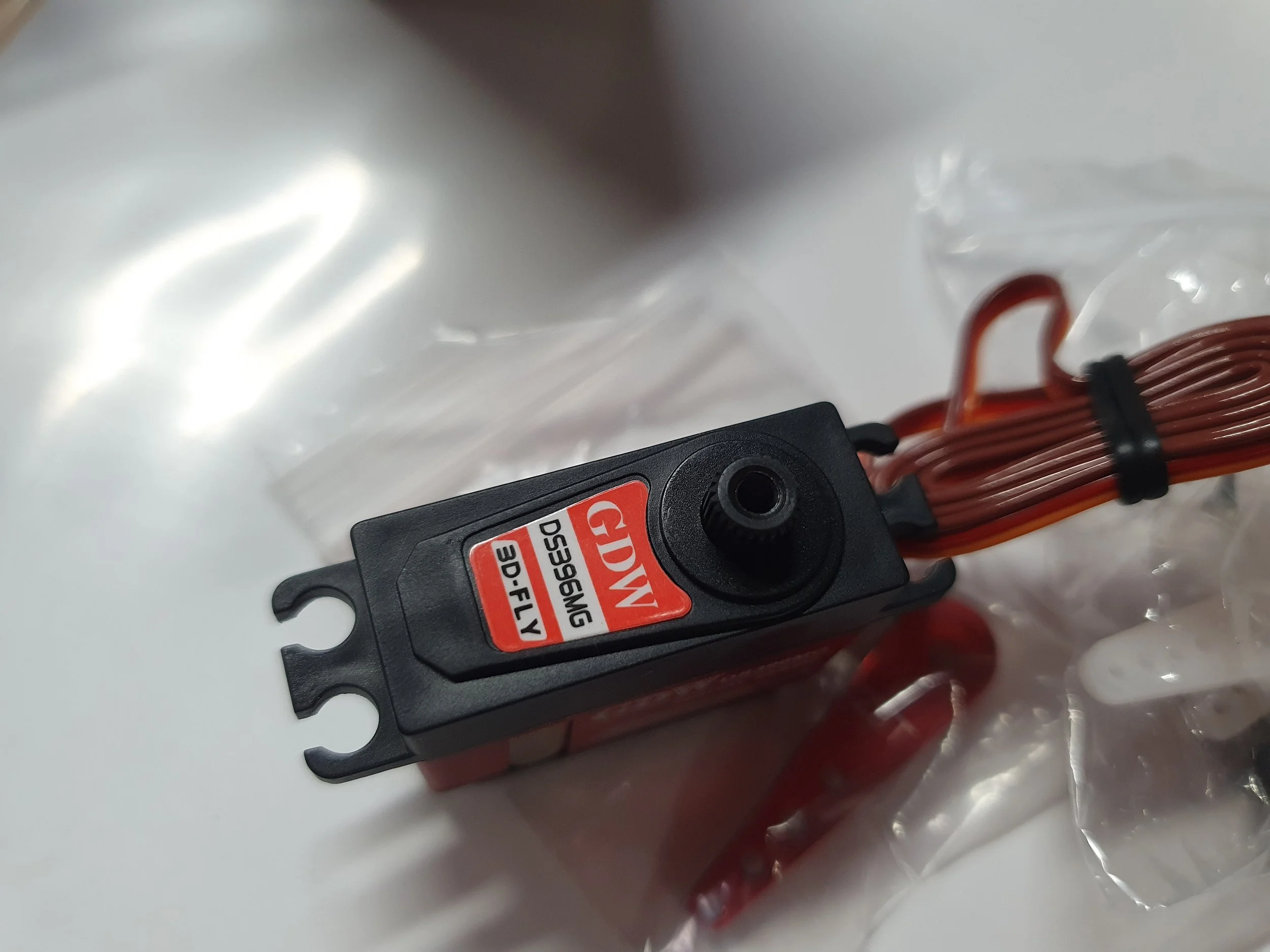

GDW DS396MG 12KG 8.4V Digital metal gear Servo with 25t alloy horn
We have found these servos to be strong and fast with super smooth action that has meet the needs of the Omp hobby 60” edge 540s on 8.4v .
Very impressive performance and not breaking the bank either to kit out your plane.
Specification:
Brand: GDW
Model: DS396MG
Bench tests reported values
Test Voltage
6.0V
7.4V
8.4V
Speed
0.128sec/60°
0.10sec/60°
0.093sec/60°
Torque
9.0Kg.cm
11.3Kg.cm
12.9Kg.cm
Fast continuous operating current
700mA
850mA
1000mA
Stall current
1800mA
2000mA
2300mA
Dead Band Width
3u
General Data
Motor Type:
Coreless motor 15*15mm
Potentiometer Type:
Japan noble 220°
Chip type:
Digital
Weight:
39±1g
Gear Material:
Iron copper gear
Structural materials :
Internediate metal
Horn Gear Spline:
25T 5.92mm
Wire length:
220±5mm
Wire Diameter:
0.15mm*
Number of wire cores:
30
Package included:
1*GDW DS396MG Servo
1*25t Red Alloy horn 30mm
Assortment of plastic horns and hardware to mount servo
Long leads on the servo for wings
